HIGHSIDER CAN-BUS resistor CBW1 with DIP-switch.

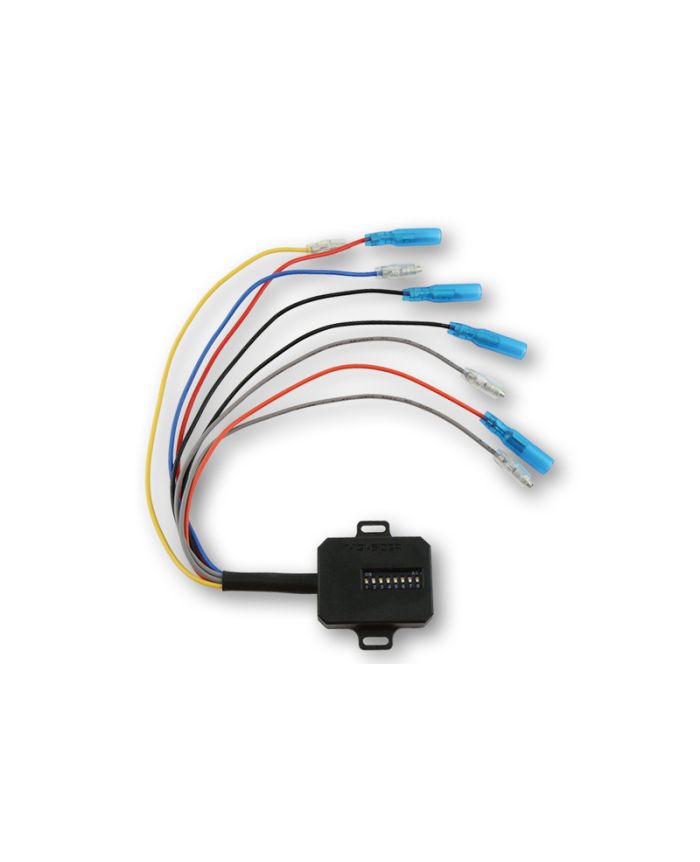

Our newly developed HIGHSIDER CAN-BUS resistor CBW1 fits most vehicles that have a CAN-BUS system.
The CBW1 resistor provides a required electrical load for your vehicle, which, if the dip switches are set correctly, will result in no flashing of the accessory flashers in the cockpit.
In addition, a reliability is given. This means:
If the accessory indicators fail due to an electronic fault, an error message is immediately displayed in the cockpit.
Up to 2 channels can be operated, such as turn signals at the rear left and turn signals at the rear right.
If 2 pairs of indicators need to be changed,also 2 CBW1 needed to be used.
Which requirements should be met in order to use the CBW1 on the motorbike:
Either:
The motorbike was originally produced with LED indicators.
Or:
The motorbike has a CAN-BUS System
If these requirements are not met, the CBW1 unit will not function (!) In this case, we recommend the following resistances:
For indicators with 21 Watt
6,8 Ohm partnumber 207-025
or
10 Ohm partnumber 207-028
For indicators with 10 Watt
27 Ohm partnumber 207-020
The following resistance values can be set on the CBW1:
150 ohms
170 ohms
240 ohms
300 ohms
400 ohms
600 ohms
1200 ohms
Dimensions:
Height = 11mm
Width = 31mm (without straps)
Width = 46mm (with tabs)
Length = 40mm
Cable length = 200mm with pins
Connections:
Yellow = input channel 1 (+)
Orange = output channel 1 (+)
Blue = input channel 2 (+)
Red = output channel 2 (+)
Gray = input mass (-)
Black = output ground (-)
| EAN | 4054783301478 |
|---|
